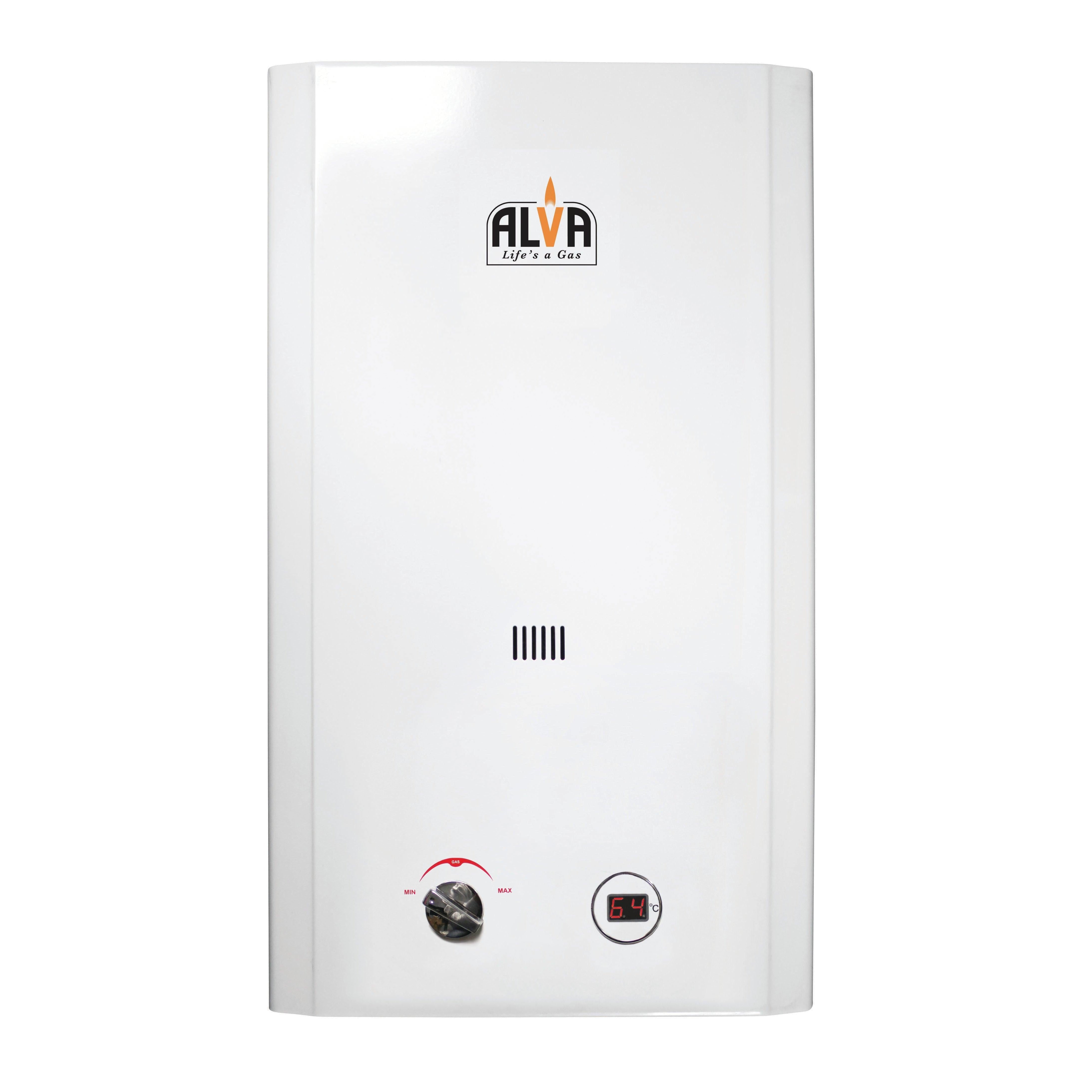

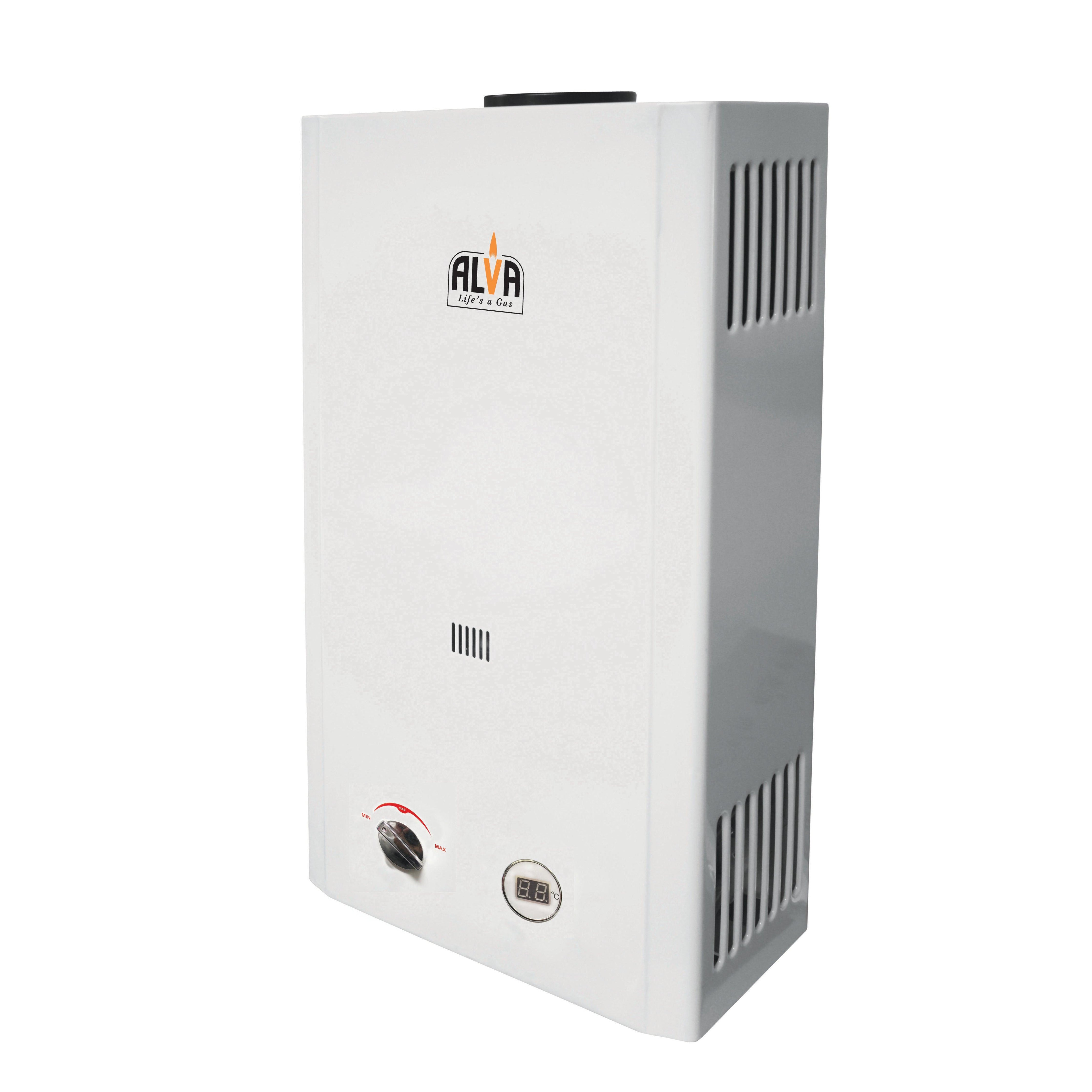

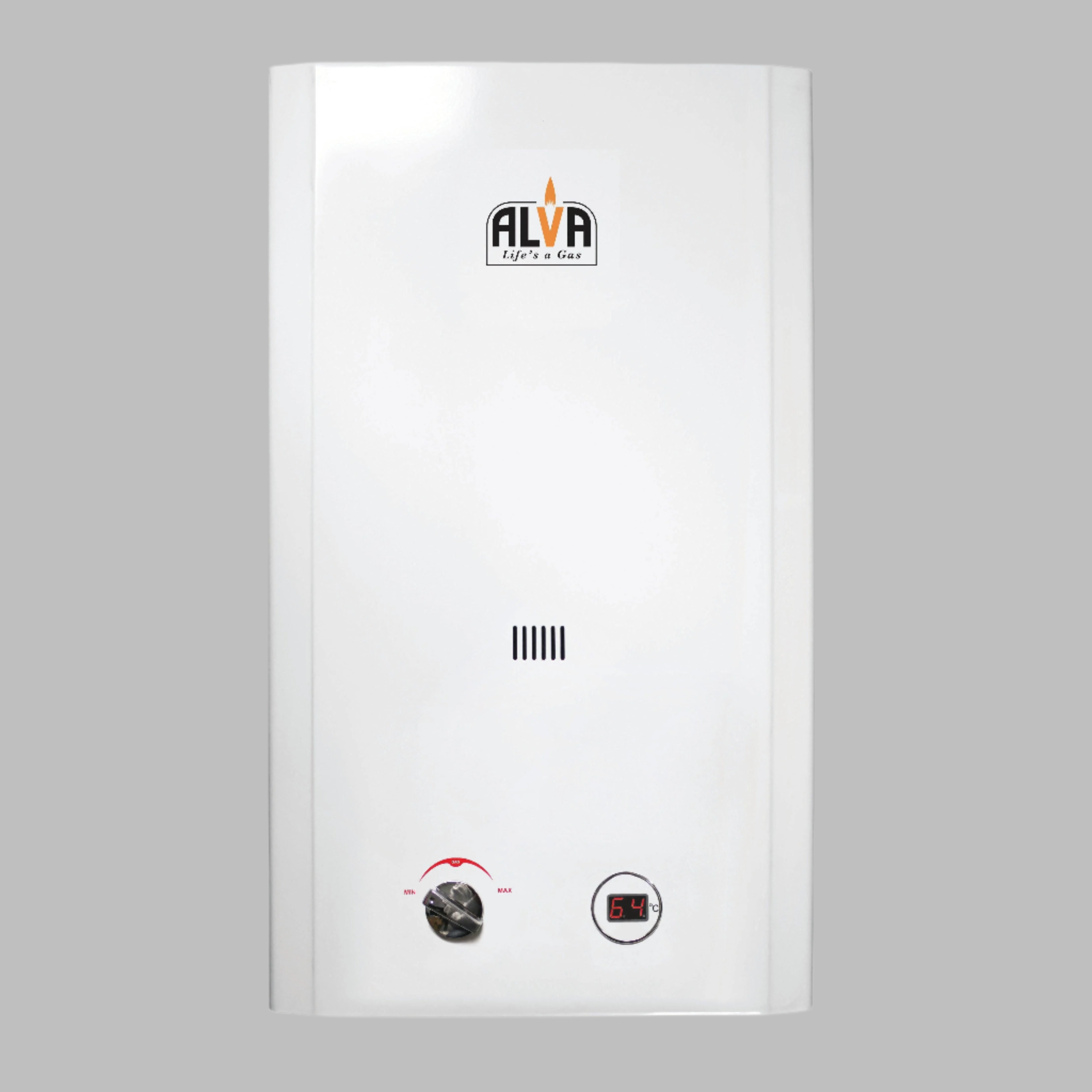

12L GAS WATER HEATER

• The 12L model is recommended for a single tap sink, bath or basin
• We make this water heater so that you are able to heat water for domestic use safely, conveniently and virtually instantly - using a minimal amount of energy
• Your world is better with Alva

• FOR YOUR OWN SAFETY:
• Before using this appliance please read through the instruction manual & make sure you understand everything. If you are not sure, please call 086 100 2582 or visit www.alva.co.za for help.
• Always operate this product according to its instructions. It is illegal & dangerous to modify any part of this appliance.
• This product is not intended for use in conjunction with a mixer type water tap, & must only be installed to a cold water supply.

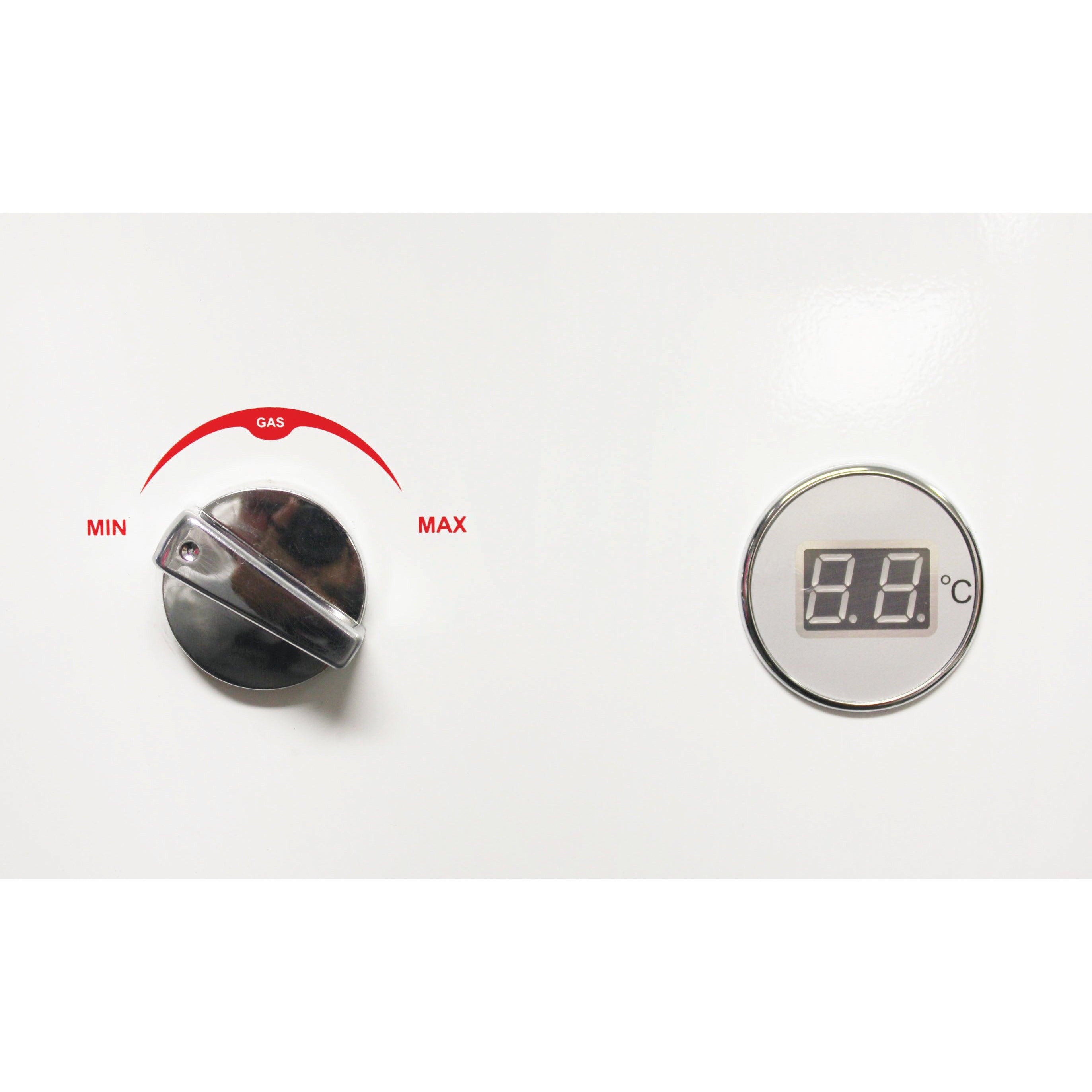

• Digital LED temperature display
• Gas flow regulation control knob
• Pulse ignition
• Power Supply: 2x D Batteries – NOT INCLUDED
• Heat Output: 24kW
• Water Input: 12 L/min
• Gas Consumption: 1.78 kg/hr at max
• Suitable Water Pressure 0.025-0.5 MPa
• Water flow regulation control knob. (control min & max water flow rate)
• Operating pressure 2.8kPa

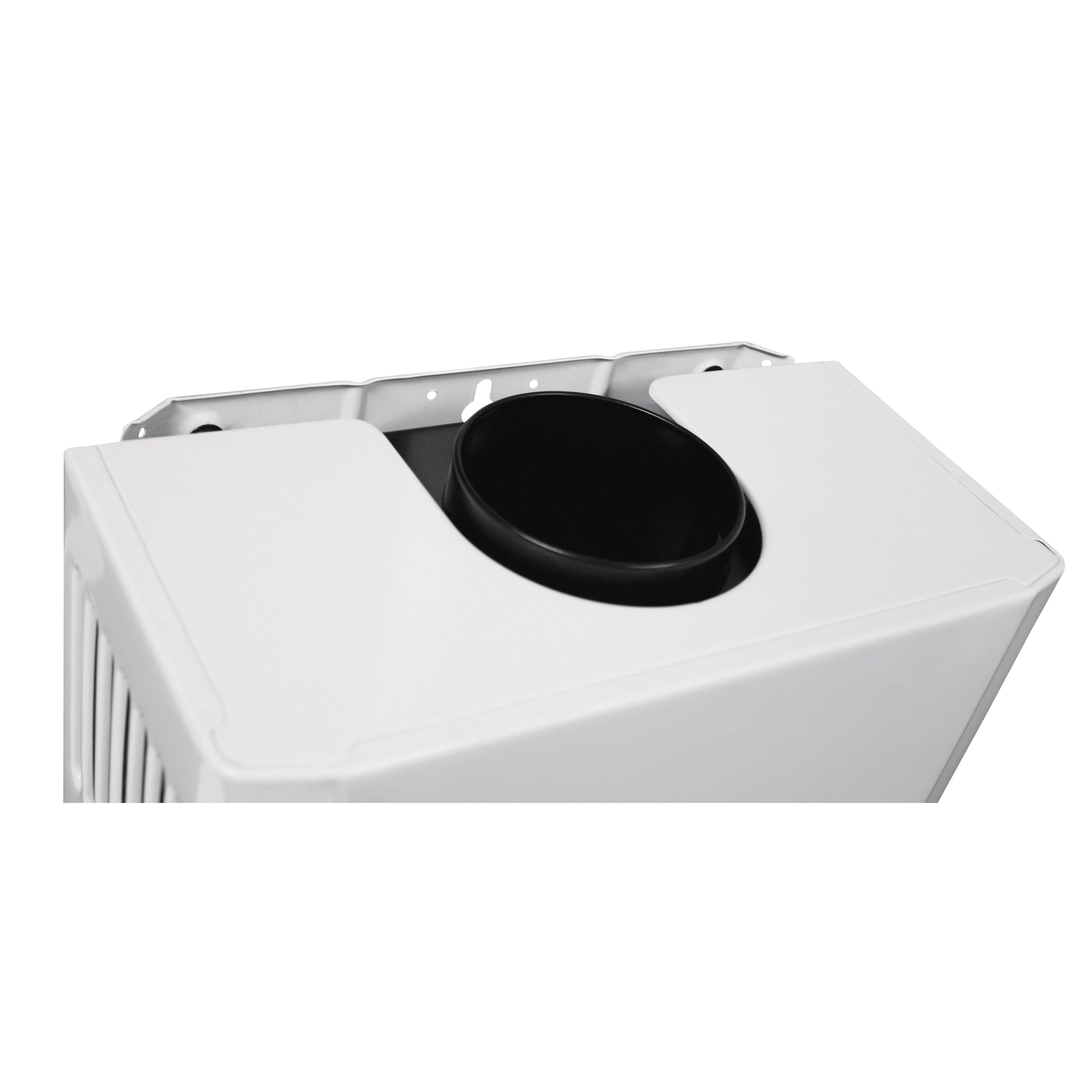

• Exhaust Discharge Mode: Flue Duct Type – NOT INCLUDED
• [[ Code: BA186 Alva Flue Sold Separately]]
• SANS 1156 8mm Gas Hose – NOT INCLUDED
• Size of each Jet 0.71mm
• Water Heater Type: B (For indoor & outdoor use)
• Recommended cylinder size 9Kg & above
• Regulator not supplied with the unit
• 12 Month warranty
• LPGSA approved: In Accordance with: SANS 1539, SANS 1237, SANS 1156 (appliance & hose)

• Unit weight: 9.15kg
• Unit Dimensions: 17 x 34.5 x 61 cm
• Shipping Unit Weight: 10.15kg
• Shipping Unit Dimensions: 70.5 x 40 x 25 cm (LxWxH) • This product requires professional installation by an LPGSA approved technician. Failure to do so voids the warranty and is illegal

• 1x 12L Gas Water Heater
• 2x Wall mounting screws & 1x water hose connector fitting
• 1x Assembly instructions
