• We make this water heater so that you are able to heat water for domestic use safely, conveniently and virtually instantly - using a minimal amount of energy.
  • Your World Is Better With ALVA

  • This product requires professional installation by an LPGSASA approved technician. Failure to do so voids the warranty.

  • Before using this appliance please read through the instruction manual & make sure you understand everything. If you are not sure, please call 086 100 2582 or visit www.alva.co.za for help.
  • Always operate this product according to its instructions. It is illegal & dangerous to modify any part of this appliance.
  • This product is not intended for use in conjunction with a water tap mixer, & must only be installed to a cold water supply.

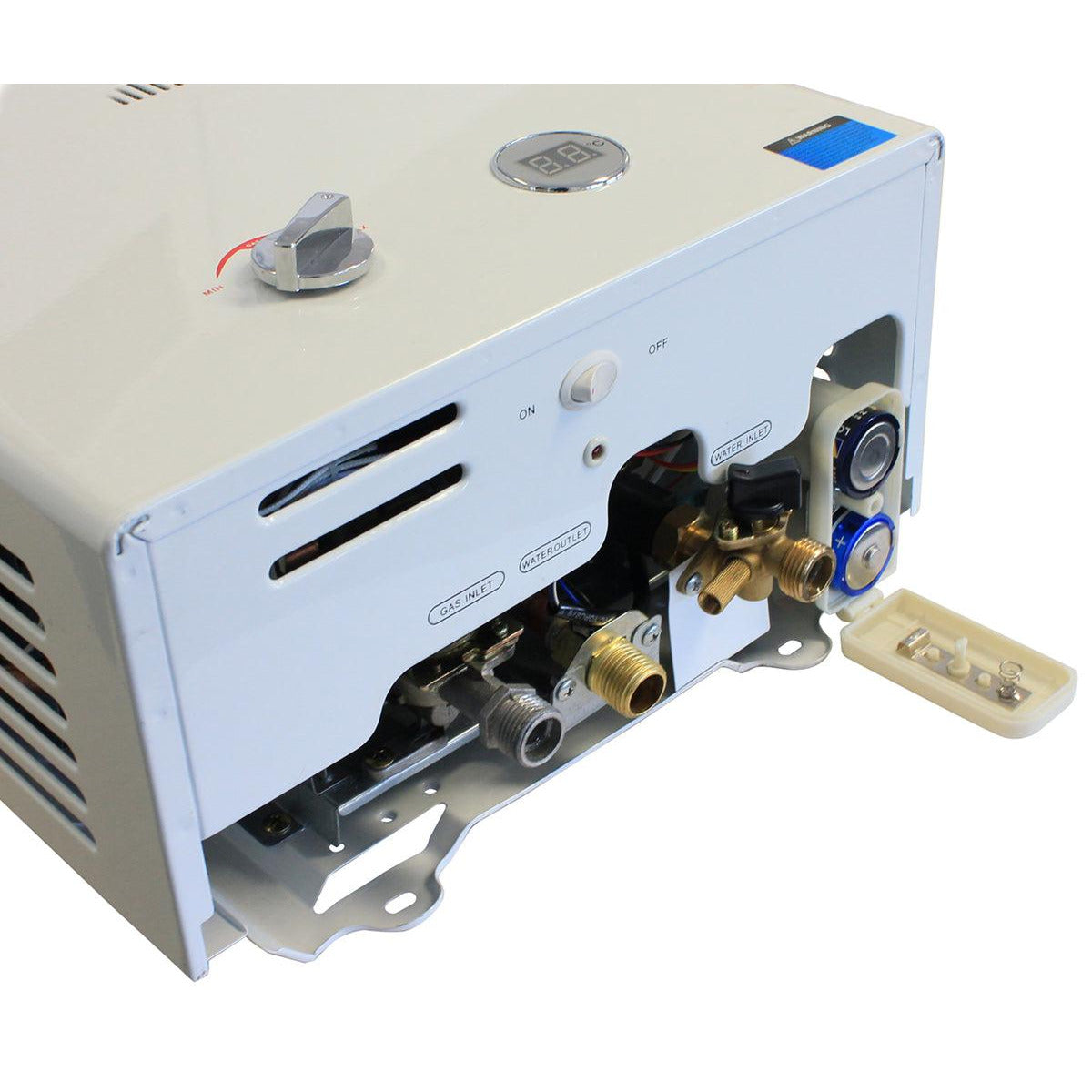

  • Digital LED temperature display
  • Gas flow regulation control knob
  • Pulse ignition

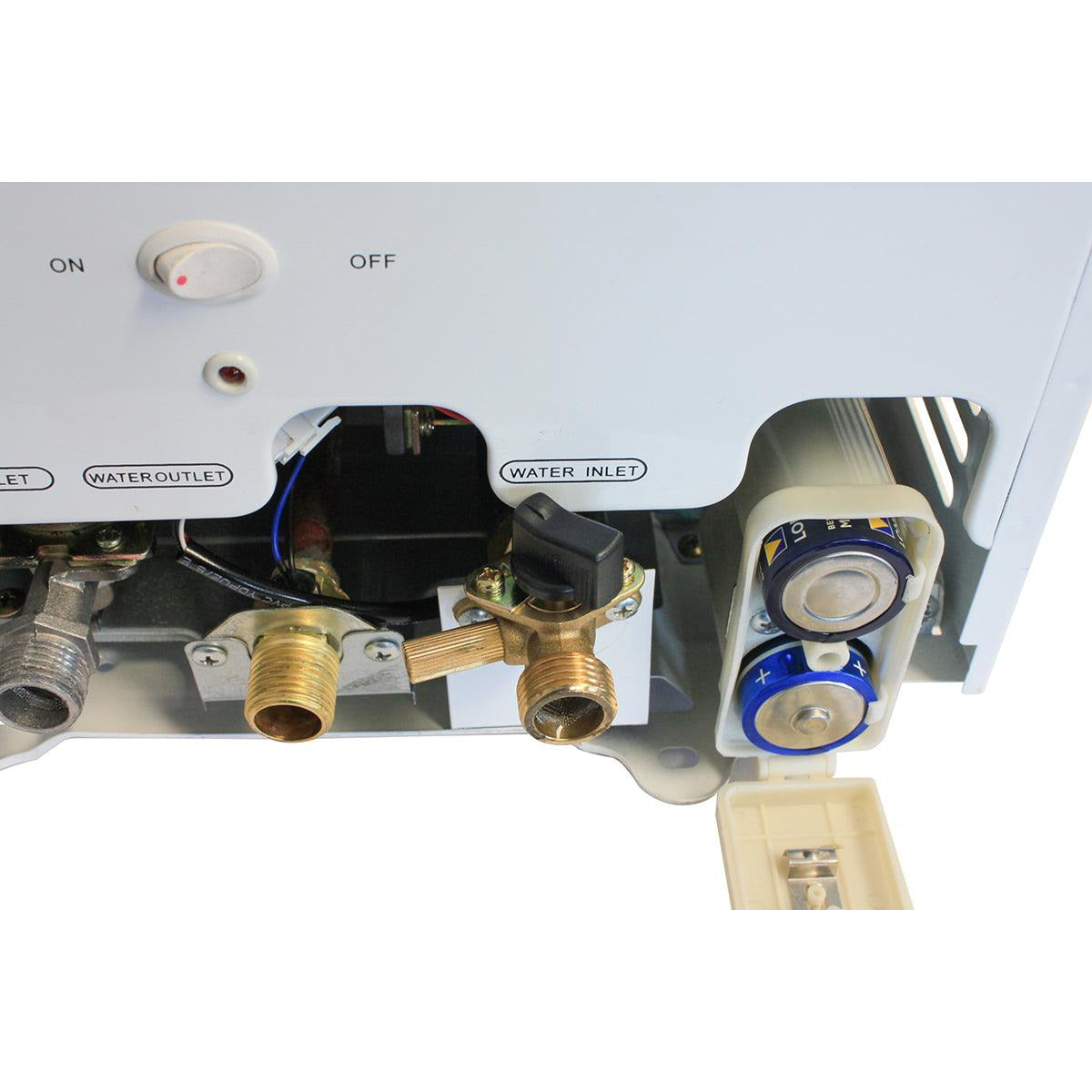

  • Power Supply: 2x D Batteries - not included
  • Heat Output: 16kW
  • Water Input: 8 L/min
  • Gas Consumption: 1.25 kg/hr at max
  • Suitable Water Pressure 0.025-0.5 MPa
  • Water flow regulation control knob. (control min & max water flow rate)
  • Operating pressure 2.8kPa

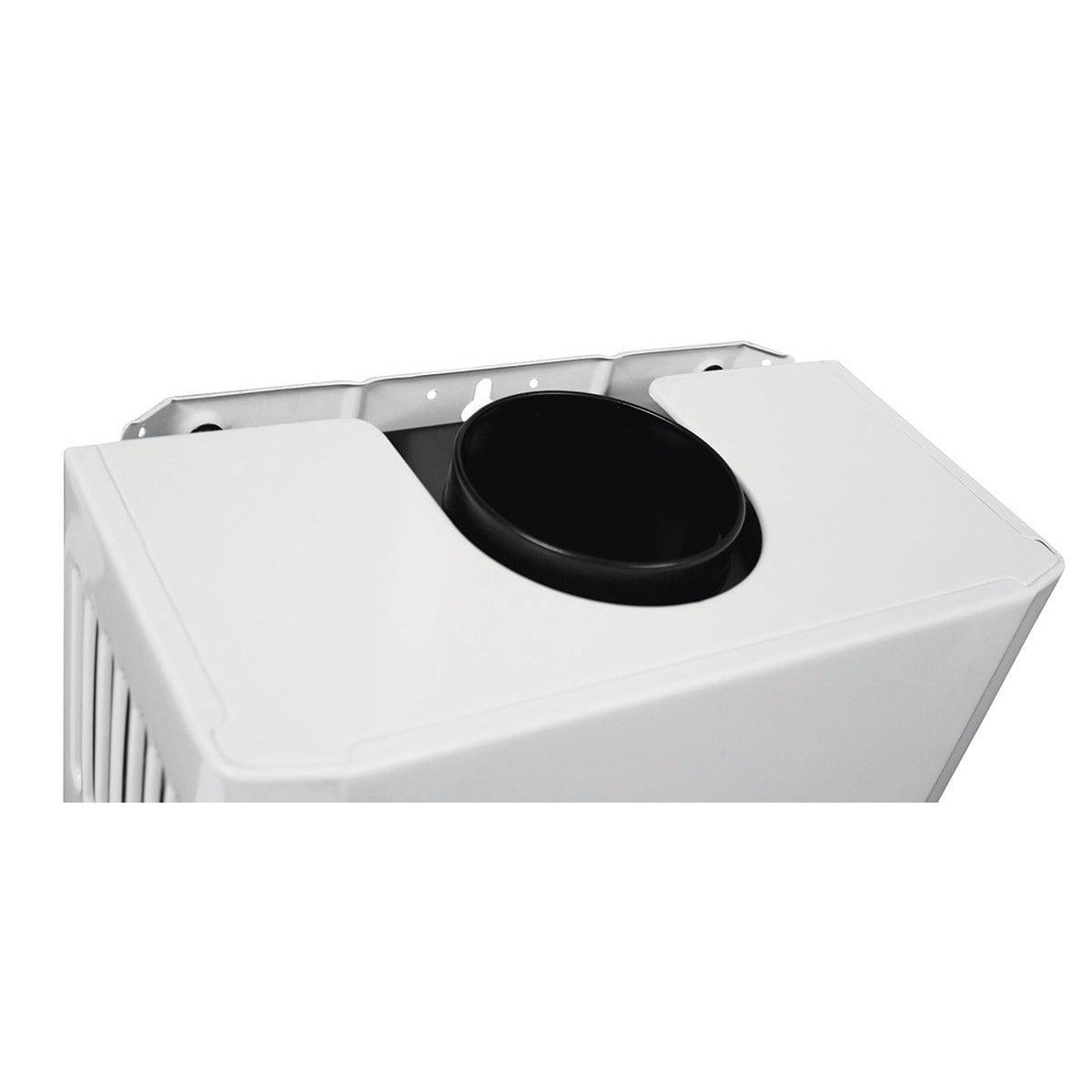

  • Exhaust Discharge Mode: Flue Duct Type - not included
  • [[ Code: BA185 Alva Flue Sold Separately]]
  • SANS 1156 Gas Pipe φ 8mm Hose – not included
  • Size of each Jet 0.71mm
  • Water Heater Type: B (For indoor & outdoor use)
  • Recommended cylinder size 9Kg & above
  • Regulator not supplied with the unit

  • Unit weight: 11.2kg
  • Dimensions: 630 x 350 x 215mm
  • 12 Month warranty
  • LPGSASA approved: In Accordance with: SANS 1539, SANS 1237, SANS 1156 (appliance & hose)

  • What’s in the box

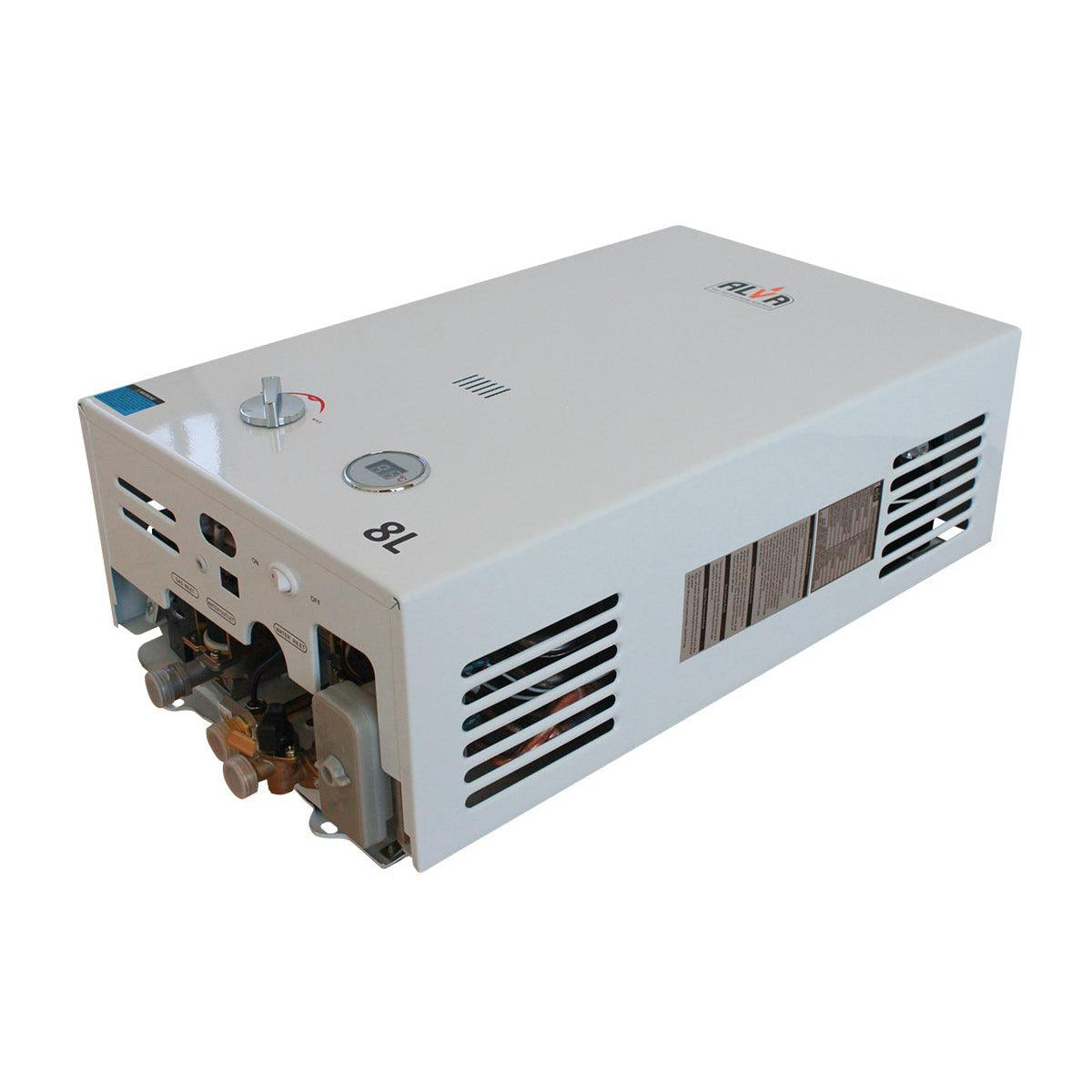

  • 1x 8L Gas Water Heater
  • 2x Wall mounting screws & 1x water hose connector fitting
  • 1x Assembly instructions

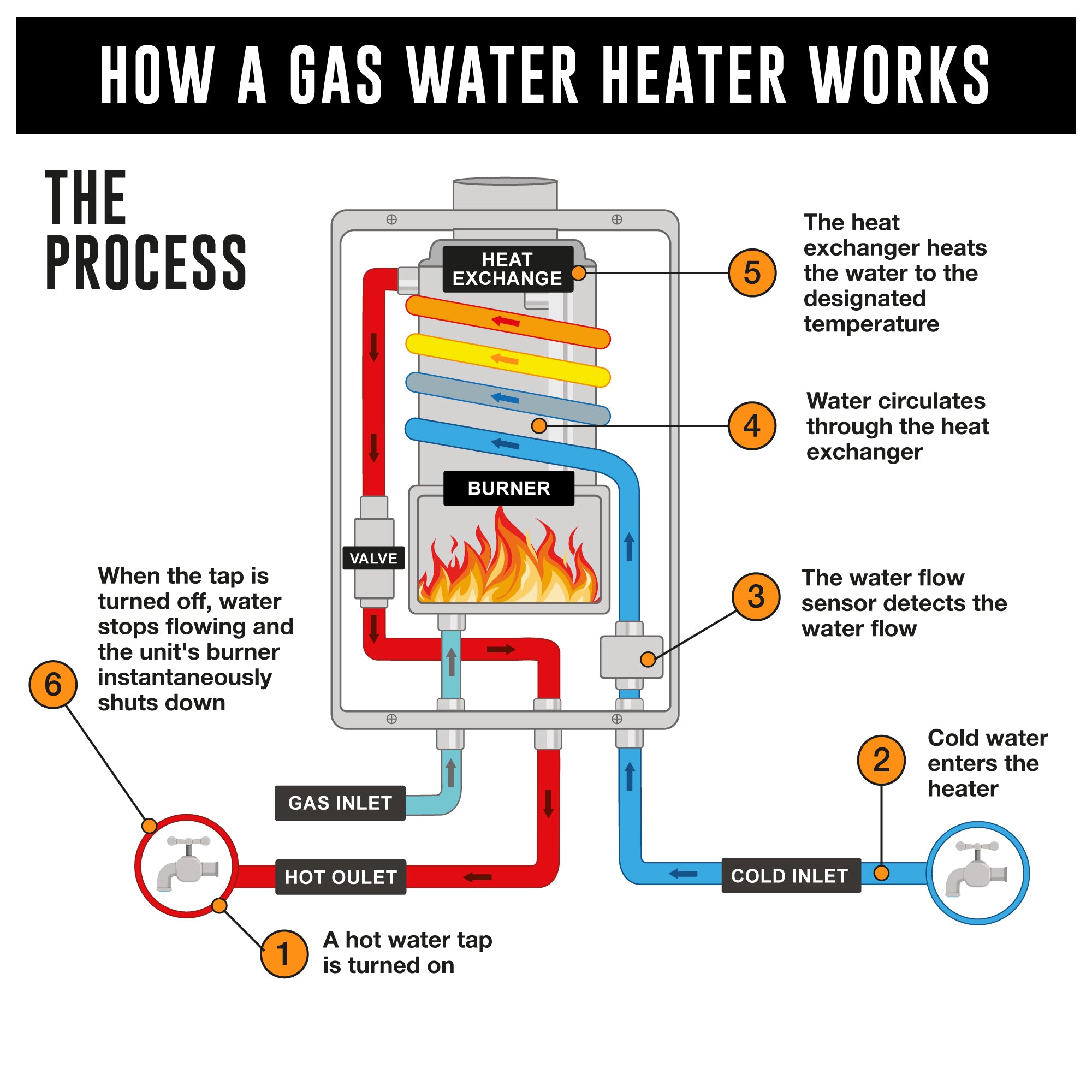

  • Water controlled automatic ignition: If the hot water tap is turned on, the unit will automatically ignite & deliver hot water from the tap water outlet.
  • Auto cut-off protection: (1) The auto cut-off protection will extinguish the gas supply immediately if the water supply is too low (less than 8L /min or the unit overheats (water hotter than 85°C). (2) Unit will shut down the gas supply within 4 minutes when used without a flue.
  • Low water pressure start-up function: When water supply pressure is lower to 0.025Mpa, the water heater cannot be ignited. Fit water pressure pump to boost pressure.
  • Anti-freeze protection: When temperature is very low, remove the water discharge valve to discharge accumulated water inside the water pipe to avoid damage caused by freezing when the water heater is not in use.
  • High-pressure protection: Once water pressure is over 0.8Mpa, the water discharge valve will release water & lower the pressure. This will happen automatically to avoid damage.
